1 The Product Introduction of Violet CTP Aluminum Plate
The Violet CTP Aluminum Plate produced by Henan Chalco Aluminum using the original multi-layer coating technology is a special plate for the Violet CTP Aluminum Plate-making machine, which achieves the high performance and stable quality of the plate, the plate can be applied to commercial color printing, and at the same time it can meet the printing requirements of the newspaper industry.



2 The Technical Parameters of Violet CTP Aluminum Plate
Product name: Violet CTP Aluminum Plate
Alloy temper: 1060, 1050A, 1100 H18
Thickness: 0.15mm- 0.4mm
Available specifications: various specifications, or according to customer’s specifications
Maximum width: 1350mm
Spectral Sensitivity/Photosensitive wavelength: 405nm
Sensitivity/Exposure energy: 70-80uj / Cm
Resolution: (3-97%) 175lpi, can output 10um microwire under 1800dpi
Pre-baking temperature: 105-110 ℃
Developing temperature: 25 ± 2 ℃
Developing time: 15-17S
Operating environment temperature: 20-26 ℃
Operating environment relative humidity: 40-60%
Safety light: Operate in amber safety light or yellow safety light, the brightness is controlled between 80-120 lumens, and the placement time is less than 15 minutes
Run Length: Unbaked 150,000 impressions ; Baked:500,000 impressions
Storage period: 12 months (<30 ℃, dry, protected from light)



3 The Product Advantages of Violet CTP Aluminum Plate
1) The Violet CTP Aluminum Plate produced by our company has high sensitivity, high precision and high stability, which is very suitable for newspaper and commercial rotary printing
2) The Violet CTP Aluminum Plate produced by our company has clear and sharp dots, and the dots are very small.
3) The Violet CTP Aluminum Plate produced by our company has excellent drug resistance and high run length
4) The Violet CTP Aluminum Plate produced by our company can be operated under the yellow safety light, and the work is simple and convenient.

4 The Usage of Violet CTP Aluminum Plate
The Violet CTP Aluminum Plate produced by our company is suitable for all mainstream photosensitive CTP plate making machines equipped with 405nm laser diodes on the market, which is very suitable for newspaper and commercial rotary printing

5.The Packaging of Violet CTP Aluminum Plate

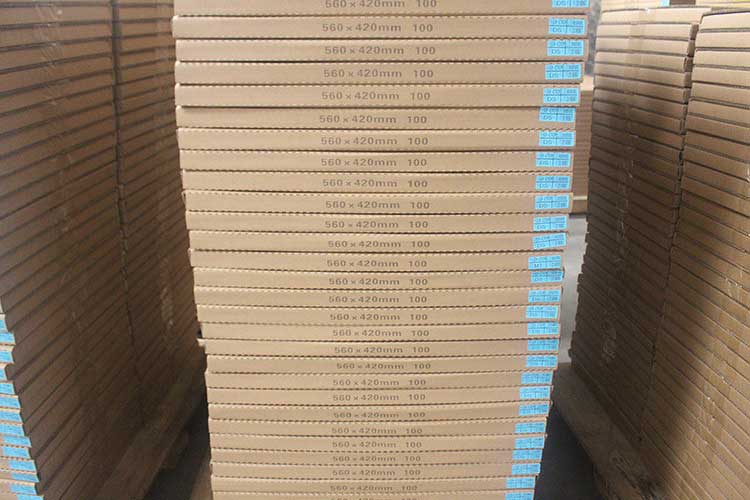

The packaging of Violet CTP Aluminum Plate produced by our company: two coated faces are placed facing each other, separated by neutral backing paper in the middle, the outside is covered with plastic lined black kraft paper and placed in the carton box,each carton box is loaded around 50 -100 pieces,
Then stack the loaded carton boxes neatly on the wooden pallet and protect them with wooden frames or cardboard.
Finally, wrap it with kraft paper or plastic film and tighten by plastic tapes.
Or Packed according to customer requirements.
