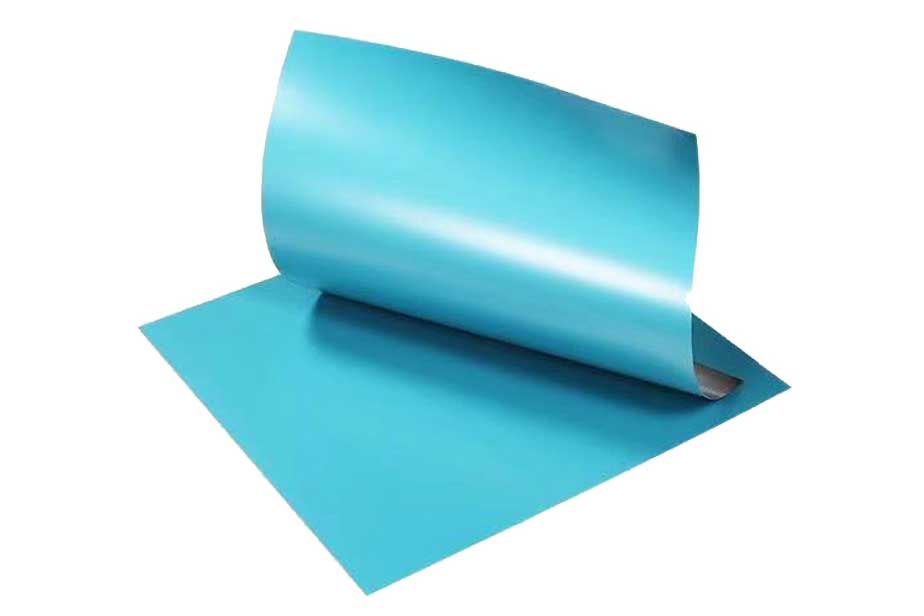

1. The Product introduction of Thermal Double layer CTP Plates
The Thermal CTP Plates produced by Henan Chalco has higher run length, better development adaptability and more exquisite dot reduction performance,it has the characteristics of no need of baking, extremely fast sensitivity, perfect resolution, stable imaging, and ultra high durability etc ,it is a new innovative plate, is a Thermal Double layer CTP Plates suitable for exquisite printing, is the first choice for high-end printing.



2.The Technical Parameters of Thermal Double layer CTP Plates
Product name: Thermal Double layer CTP Plates
Alloy temper: 1060, 1050A, 1100 H18
Thickness: 0.15mm- 0.4mm
Available specifications: various specifications, or according to customer’s specifications
Maximum width: 1350mm
Spectral Sensitivity/Photosensitive wavelength: 830nm
Sensitivity/Exposure energy: 110-130mj / Cm
Resolution: 1-99%
Developing temperature: 25 ± 1 ℃
Developing time: 20-30 seconds
Safety light: bright room, safe operation time 2-4 hours
Run Length : no baking required, common ink 350,000-400,000 impressions, UV ink 150,000-200,000impressions. Note: Run Length varies with printing conditions and imaging content.
Shelf life 24 months
Storage conditions: Temperature: 10-25 ℃, temperature 40% -60%, protected from light, moisture, sealed and stored, stacking no more than 1.5 meters

3. The Product Advantages of Thermal Double layer CTP Plates product
1) The Thermal Double layer CTP Plates produced by our company has higher run length, better development adaptability and more exquisite dot reduction performance
2) The Thermal Double layer CTP Plates produced by our company has the characteristics of no need of baking, extremely fast sensitivity, perfect resolution, stable imaging, and ultra high durability.
3) The Thermal Double layer CTP Plates produced by our company has good adaptability and is compatible with all mainstream thermal plate-making machines in the market

4.The Usage of Thermal Double layer CTP Plates products
The Thermal Double layer CTP Plates produced by our company is suitable for baking  free printing of ultra-long UV inks and ordinary inks. It is widely used in commercial, packaging, newspaper and UV-resistant ink printing.

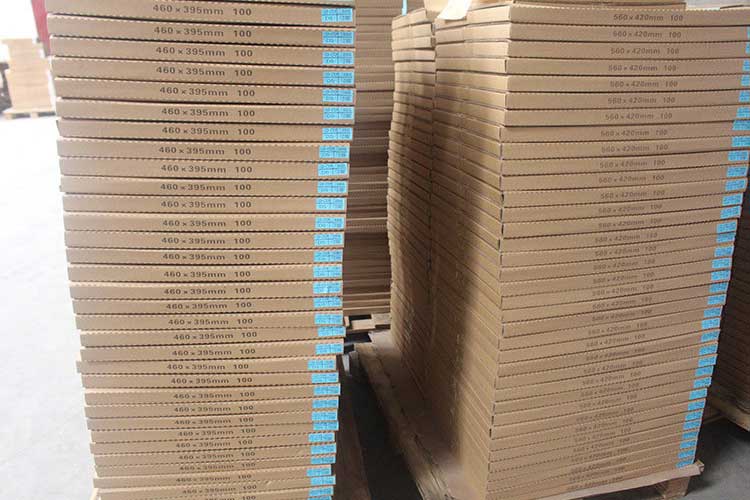

5.The Packaging of Thermal Double layer CTP Plates
The packaging of Thermal Double layer CTP Plates produced by our company: two coated faces are placed facing each other, separated by neutral backing paper in the middle, the outside is covered with plastic lined black kraft paper and placed in the carton box,each carton box is loaded around 50 -100 pieces,
Then stack the loaded carton boxes neatly on the wooden pallet and protect them with wooden frames or cardboard.
Finally, wrap it with kraft paper or plastic film and tighten by plastic tapes.
Or Packed according to customer requirements.
