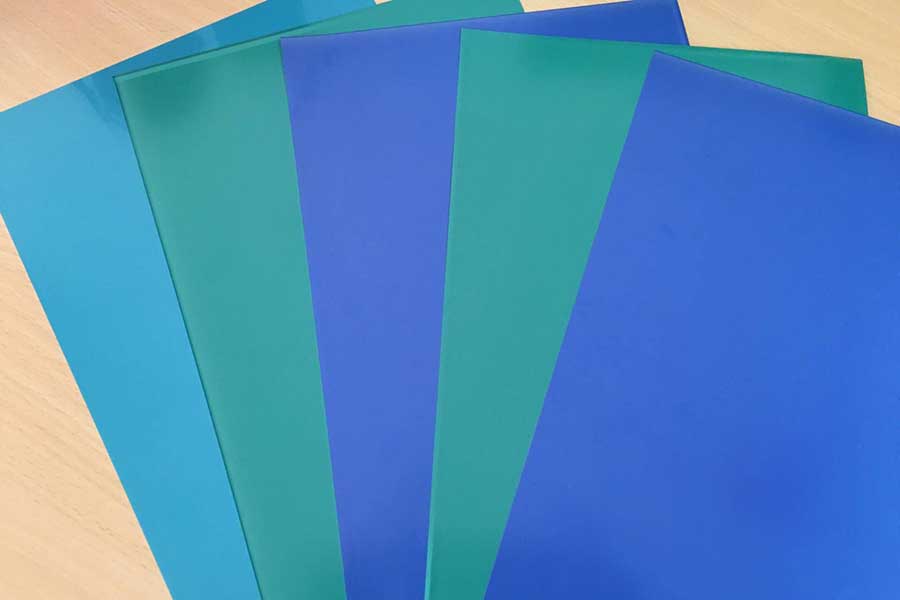

1 The Product Introduction of Positive UV-CTP Plate
Positive UV-CTP Plate is a high-sensitivity of high-grade plate specially developed by Henan Chalco Aluminum to meet the requirements of UV-CTP (CTCP) technology development. This plate is not only suitable for UV-CTP (CTCP) plate making, but also can be used for traditional CTP plate making. The unique formula design and manufacturing process make it has the characteristics of high sensitivity, strong adaptability and stable quality. It is very suitable for commercial exquisite color printing, and can also meet the high-speed and high-efficiency requirements of the newspaper industry.



2, The Technical Parameters of Positive UV-CTP Plate
Product name: Positive UV-CTP Plate
Alloy temper: 1060, 1050A, 1100 H18
Thickness: 0.15mm- 0.4mm
Available specifications: various specifications, or according to customer’s specifications
Maximum width: 1350mm
Spectral Sensitivity/Photosensitive wavelength: 400-410nm
Sensitivity/Exposure energy: 45-60mj / cm²
Developing time: 20-30 seconds
Developing temperature: 25 ± 1 ℃
Resolution: 1-99%
Run Length:> 100,000 impressions
Safety light: yellow light
Shelf life: 24 months
Storage conditions: temperature 5-30 ℃, humidity 40-80%, protected from light, moisture, closed and stored, stacking no more than 1.5 meters.



3. The Product Advantages of Positive UV-CTP Plate
1) The Positive UV-CTP Plate produced by our company has the characteristics of high sensitivity, strong adaptability and stable quality
2) The Positive UV-CTP Plate produced by our company has the characteristics of fast sensitivity, clear dots and high print resistance
3) The Positive UV-CTP Plate produced by our company has good adaptability: it can meet the needs of various CTCP plate-making machines and users.

4 The Usage of Positive UV-CTP Plate
The Positive UV-CTP Plate produced by our company can meet the needs of various CTCP plate making machines and users, and is widely used in packaging and exquisite commercial printing.

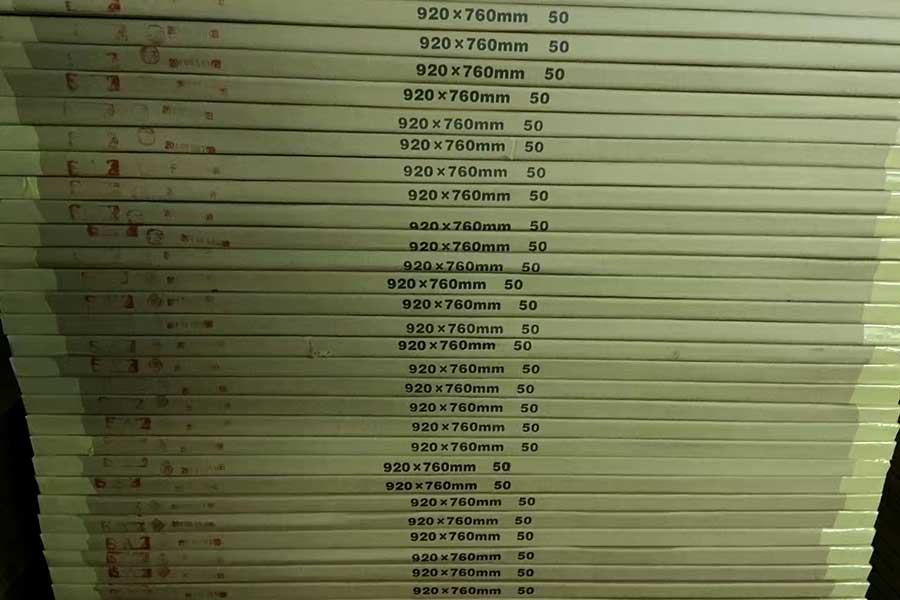

5.The Packaging of Positive UV-CTP Plate
The packaging of Positive UV-CTP Plate produced by our company: two coated faces are placed facing each other, separated by neutral backing paper in the middle, the outside is covered with plastic lined black kraft paper and placed in the carton box,each carton box is loaded around 50 -100 pieces,
Then stack the loaded carton boxes neatly on the wooden pallet and protect them with wooden frames or cardboard.
Finally, wrap it with kraft paper or plastic film and tighten by plastic tapes.
Or Packed according to customer requirements.
